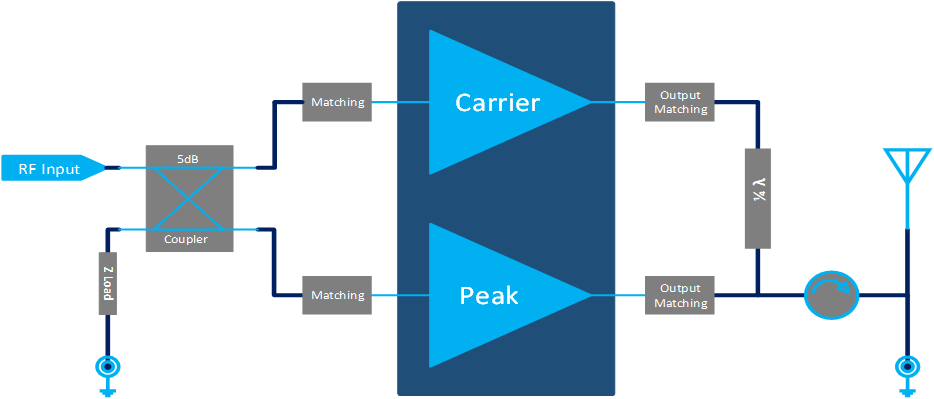

4800MHz-5000MHz 20W Final Solution
|
Final: DXG2CH50A-200EF |
|
|
|
|
Package Type: 780-4 |
|
CW Pulsed 10%
|
Modulated Signal |
|||
|
Freq (MHz) |
Psat (dBm) |
Gp (dB)@44.5dBm |
DE (%)@44.5dBm |
ACLR (dBc)@ 44.5dBm |
| 4800 | 53.3 | 14.0 | 44.2 | -28.5 |
| 4900 | 53.2 | 14.2 | 44.5 | -28.5 |
| 5000 | 53.1 | 14.2 | 44.6 | -29.0 |
|
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH; Tested without isolator.
|
||||
